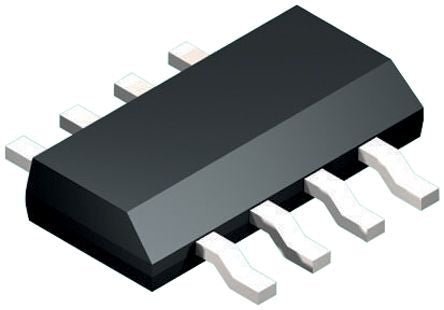

Texas Instruments SN74LVC2G126DCTR, Dual Bus Buffer, 10.8 ns@ 30 pF 32mA, 1.65 → 5.5 V, 8-Pin SM [SN74LVC2G126DCTR]; 809-6046
0₫
Mã kho: 8096046
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | LVC |
| Number of Element Inputs | 1 |
| Number of Elements per Chip | 2 |
| Maximum Propagation Delay Time @ Maximum CL | 10.8 ns@ 30 pF |
| Maximum High Level Output Current | -32mA |
| Maximum Low Level Output Current | 32mA |
| Mounting Type | Surface Mount |
| Package Type | SM |
| Pin Count | 8 |
| Dimensions | 3.15 x 2.9 x 1.2mm |
| Height | 1.2mm |
| Length | 3.15mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +125 °C |
| Width | 2.9mm |
| Propagation Delay Test Condition | 30pF |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 1.65 V |
