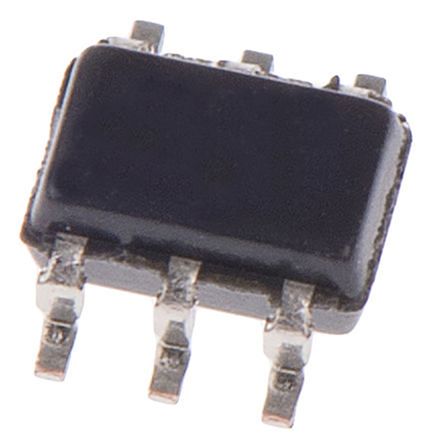

Texas Instruments SN74LVC2G17QDCKRQ1, Dual Non-Inverting Schmitt Trigger Buffer, 1.65 → 5.5 V, 6-Pin SC-70 [SN74LVC2G17QDCKRQ1]; 660-7420
0₫
Mã kho: 6607420
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | LVC |
| Logic Function | Schmitt Trigger Buffer |
| Number of Channels | 2 |
| Schmitt Trigger Input | Yes |
| Input Type | Single Ended |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SC-70 |
| Pin Count | 6 |
| Maximum High Level Output Current | -32mA |
| Maximum Low Level Output Current | 32mA |
| Maximum Propagation Delay Time @ Maximum CL | 5.4 ns @ 3.3 V |
| Dimensions | 2 x 1.25 x 0.9mm |
| Height | 0.9mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +125 °C |
| Length | 2mm |
| Minimum Operating Supply Voltage | 1.65 V |
| Minimum Operating Temperature | -40 °C |
| Propagation Delay Test Condition | 50pF |
| Width | 1.25mm |
