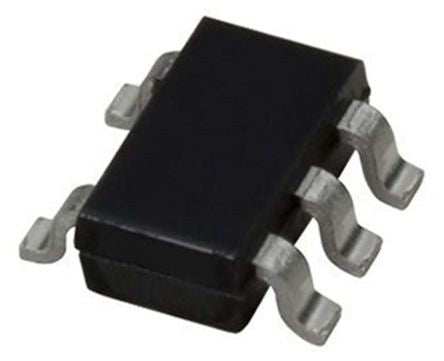

1-CH 3-ST CMOS Buffer 5-Pin SOT-353 [74AHCT1G125SE-7]; 146-0450
by DiodesZetex
0₫
Mã kho: 1460450
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | 74AHCT |
| Logic Function | Buffer, Driver |
| Number of Channels | 1 |
| Schmitt Trigger Input | Yes |
| Input Type | CMOS, Schmitt Trigger |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SOT-353 |
| Pin Count | 5 |
| Maximum High Level Output Current | -8mA |
| Maximum Low Level Output Current | 8mA |
| Maximum Propagation Delay Time @ Maximum CL | 9.5 ns @ 50 pF |
| Dimensions | 2.2 x 1.35 x 1mm |
| Maximum Operating Temperature | +125 °C |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Supply Voltage | 5.5 V |
| Width | 1.35mm |
| Minimum Operating Supply Voltage | 4.5 V |
| Minimum Operating Temperature | -40 °C |
| Length | 2.2mm |
| Height | 1mm |
