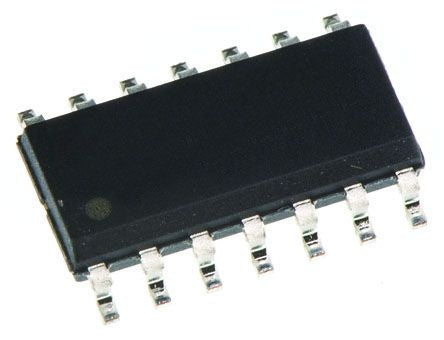

Texas Instruments SN74LVTH125DR Quad Buffer & Line Driver, 3-State, 14-Pin SOIC [SN74LVTH125DR]; 179-2135
0₫
Mã kho: 1792135
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | LVT |
| Logic Function | Buffer, Line Driver |
| Number of Channels per Chip | 4 |
| Input Type | Single Ended |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 14 |
| Maximum High Level Output Current | -32mA |
| Maximum Low Level Output Current | 64mA |
| Maximum Propagation Delay Time @ Maximum CL | 2.1 ns @ 3.3 V |
| Dimensions | 8.65 x 3.91 x 1.58mm |
| Height | 1.58mm |
| Maximum Operating Temperature | +85 °C |
| Propagation Delay Test Condition | 50pF |
| Length | 8.65mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 2.7 V |
| Width | 3.91mm |
