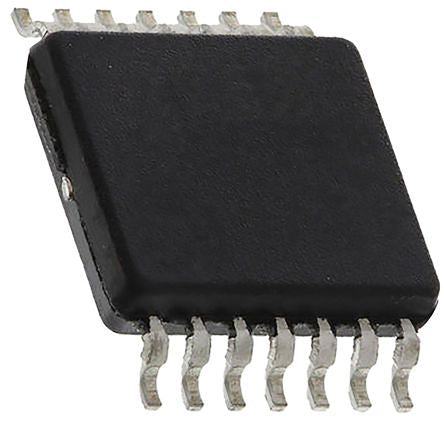

Texas Instruments SN74LV125ADBR Quad Buffer & Line Driver, 3-State, 14-Pin SSOP [SN74LV125ADBR]; 162-7423
0₫
Mã kho: 1627423
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | LV |
| Logic Function | Buffer, Line Driver |
| Number of Channels per Chip | 4 |
| Input Type | Single Ended |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Pin Count | 14 |
| Maximum High Level Output Current | -16mA |
| Maximum Low Level Output Current | 16mA |
| Maximum Propagation Delay Time @ Maximum CL | 16.5 ns @ 2.5 V |
| Dimensions | 6.2 x 5.3 x 1.95mm |
| Height | 1.95mm |
| Width | 5.3mm |
| Minimum Operating Supply Voltage | 2 V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Length | 6.2mm |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Supply Voltage | 5.5 V |
