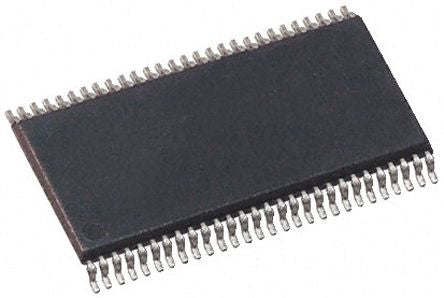

Texas Instruments SN74AVC16827DGGR 20-Channel Buffer & Line Driver, 3-State, 56-Pin TSSOP [SN74AVC16827DGGR]; 162-6392
0₫
Mã kho: 1626392
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | 74AVC |
| Logic Function | Buffer, Driver |
| Number of Channels per Chip | 20 |
| Input Type | Single Ended |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 56 |
| Maximum High Level Output Current | -24mA |
| Maximum Low Level Output Current | 24mA |
| Maximum Propagation Delay Time @ Maximum CL | 2.9ns |
| Dimensions | 14.1 x 6.2 x 1.05mm |
| Height | 1.05mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Length | 14.1mm |
| Propagation Delay Test Condition | 30pF |
| Maximum Operating Temperature | +85 °C |
| Width | 6.2mm |
| Minimum Operating Supply Voltage | 1.2 V |
| Minimum Operating Temperature | -40 °C |
