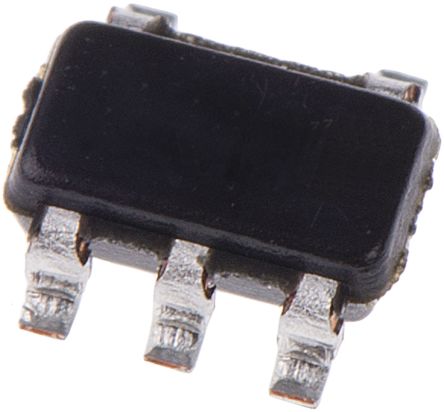

Texas Instruments SN74AUP1G07DBVR Buffer & Line Driver, Open Drain, 0.8 → 36 V, 5-Pin SOT-23 [SN74AUP1G07DBVR]; 825-3413
0₫
Mã kho: 8253413
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | 74AUP |
| Logic Function | Buffer, Driver |
| Number of Channels per Chip | 1 |
| Input Type | CMOS |
| Output Type | Open Drain |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Pin Count | 5 |
| Maximum Low Level Output Current | 4mA |
| Maximum Propagation Delay Time @ Maximum CL | 21.9 ns@ 30 pF |
| Dimensions | 3.05 x 1.75 x 1.3mm |
| Height | 1.3mm |
| Maximum Operating Temperature | +85 °C |
| Length | 3.05mm |
| Maximum Operating Supply Voltage | 36 V |
| Propagation Delay Test Condition | 30pF |
| Minimum Operating Supply Voltage | 0.8 V |
| Width | 1.75mm |
| Minimum Operating Temperature | -40 °C |
