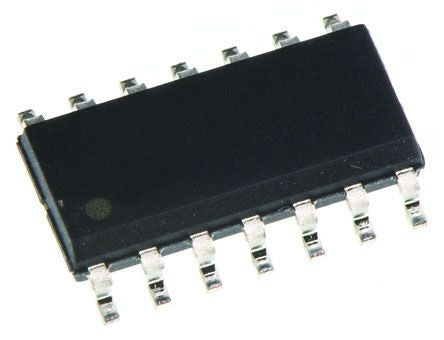

Quad Bus Buffer w 3-State SN74AHCT125D [SN74AHCT125D]; 526-606
0₫
Mã kho: 526606
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | AHCT |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 14 |
| Maximum High Level Output Current | -8mA |
| Maximum Low Level Output Current | 8mA |
| Maximum Propagation Delay Time @ Maximum CL | 7.5 ns @ 5 V |
| Dimensions | 8.65 x 3.91 x 1.58mm |
| Height | 1.58mm |
| Maximum Operating Temperature | +85 °C |
| Length | 8.65mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Minimum Operating Supply Voltage | 4.5 V |
| Width | 3.91mm |
| Minimum Operating Temperature | -40 °C |
| Propagation Delay Test Condition | 50pF |
