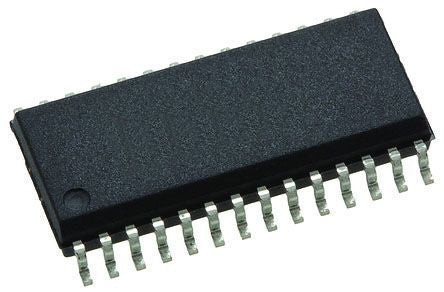

Texas Instruments SN74ABT5402ADW 12-Channel Buffer & Line Driver, 3-State, 28-Pin SOIC [SN74ABT5402ADW]; 145-6059
0₫
Mã kho: 1456059
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | ABT |
| Logic Function | Buffer, Line Driver |
| Number of Channels per Chip | 12 |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 28 |
| Maximum High Level Output Current | -12mA |
| Maximum Low Level Output Current | 12mA |
| Maximum Propagation Delay Time @ Maximum CL | 6.2 ns @ 50 pF |
| Dimensions | 18.1 x 7.6 x 2.35mm |
| Height | 2.35mm |
| Length | 18.1mm |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Temperature | -40 °C |
| Width | 7.6mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 5.5 V |
