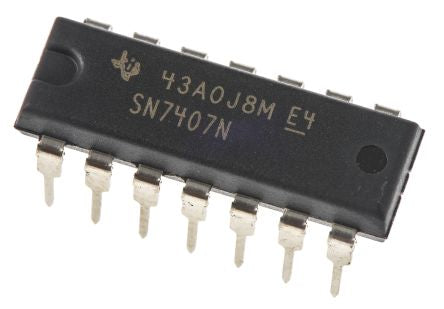

Texas Instruments SN7407N Hex Buffer & Line Driver, Open Collector, 4.75 to 5.25 V, 14-Pin PDIP [SN7407N]; 923-2310
0₫
Mã kho: 9232310
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | 74 |
| Logic Function | Buffer, Driver |
| Number of Channels per Chip | 6 |
| Input Type | Single Ended |
| Output Type | Open Collector |
| Polarity | Non-Inverting |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 14 |
| Maximum High Level Output Current | -0.25mA |
| Maximum Low Level Output Current | 40mA |
| Maximum Propagation Delay Time @ Maximum CL | 26 ns @ 5 V |
| Dimensions | 19.3 x 6.35 x 4.57mm |
| Height | 4.57mm |
| Length | 19.3mm |
| Maximum Operating Temperature | +70 °C |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Supply Voltage | 5.25 V |
| Width | 6.35mm |
| Minimum Operating Supply Voltage | 4.75 V |
| Minimum Operating Temperature | 0 °C |
