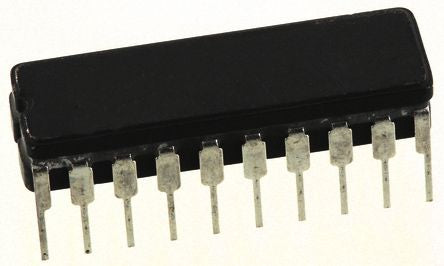

Texas Instruments SN54LS244J Octal Buffer & Line Driver, 3-State, 5V, 20-Pin CDIP [SN54LS244J]; 436-3125
0₫
Mã kho: 4363125
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | LS |
| Logic Function | Buffer, Line Driver |
| Number of Channels per Chip | 8 |
| Input Type | Single Ended |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Through Hole |
| Package Type | CDIP |
| Pin Count | 20 |
| Maximum High Level Output Current | -12mA |
| Maximum Low Level Output Current | 12mA |
| Maximum Propagation Delay Time @ Maximum CL | 18 ns @ 5 V |
| Dimensions | 24.2 x 6.92 x 4.57mm |
| Height | 4.57mm |
| Length | 24.2mm |
| Minimum Operating Temperature | -55 °C |
| Propagation Delay Test Condition | 45pF |
| Minimum Operating Supply Voltage | 4.5 V |
| Width | 6.92mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +125 °C |
