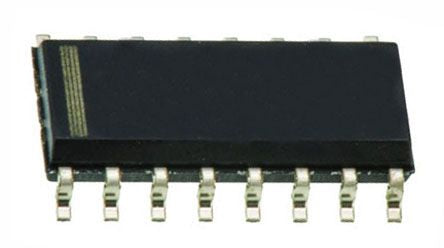

Buffer/Line Driver Hex Non-Inverting [CD74HCT365M]; 144-9956
0₫
Mã kho: 1449956
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Logic Family | HCT |
Logic Function | Buffer, Line Driver |
Number of Channels per Chip | 6 |
Input Type | Single Ended |
Output Type | 3 State |
Polarity | Non-Inverting |
Mounting Type | Surface Mount |
Package Type | SOIC |
Pin Count | 16 |
Maximum High Level Output Current | -4mA |
Maximum Low Level Output Current | 4mA |
Maximum Propagation Delay Time @ Maximum CL | 25 ns @ 4.5 V |
Dimensions | 9.9 x 3.91 x 1.58mm |
Height | 1.58mm |
Maximum Operating Temperature | +125 °C |
Width | 3.91mm |
Minimum Operating Supply Voltage | 4.5 V |
Minimum Operating Temperature | -55 °C |
Length | 9.9mm |
Propagation Delay Test Condition | 50pF |
Maximum Operating Supply Voltage | 5.5 V |
