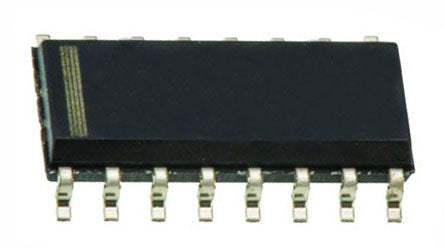

Texas Instruments CD74HC365M Hex Buffer & Line Driver, 3-State, 2 → 6 V, 16-Pin SOIC [CD74HC365M]; 663-0256
0₫
Mã kho: 6630256
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | HC |
| Logic Function | Buffer, Line Driver |
| Number of Channels per Chip | 6 |
| Input Type | Single Ended |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 16 |
| Maximum High Level Output Current | -7.8mA |
| Maximum Low Level Output Current | 7.8mA |
| Maximum Propagation Delay Time @ Maximum CL | 105 ns @ 2 V |
| Dimensions | 9.9 x 3.91 x 1.58mm |
| Height | 1.58mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Width | 3.91mm |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Supply Voltage | 6 V |
| Minimum Operating Supply Voltage | 2 V |
| Length | 9.9mm |
