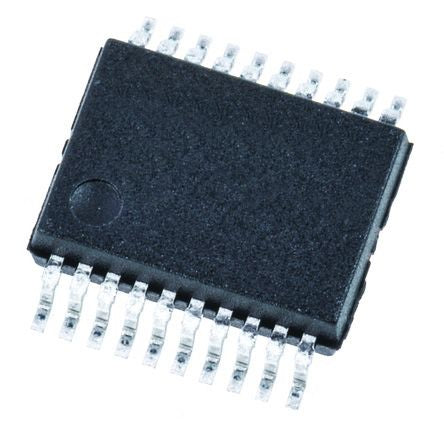

Texas Instruments CD74ACT541SM96 Octal Buffer & Line Driver, 3-State, 20-Pin SSOP [CD74ACT541SM96]; 169-5647
0₫
Mã kho: 1695647
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | ACT |
| Logic Function | Buffer, Line Driver |
| Number of Channels per Chip | 8 |
| Input Type | Single Ended |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Pin Count | 20 |
| Maximum High Level Output Current | -24mA |
| Maximum Low Level Output Current | 24mA |
| Maximum Propagation Delay Time @ Maximum CL | 8.2 ns @ 5.5 V |
| Dimensions | 7.2 x 5.3 x 1.95mm |
| Height | 1.95mm |
| Length | 7.2mm |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -55 °C |
| Propagation Delay Test Condition | 50pF |
| Width | 5.3mm |
| Maximum Operating Supply Voltage | 5.5 V |
