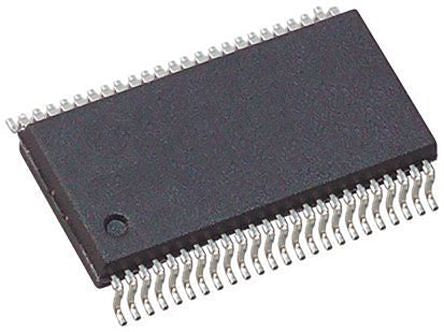

Texas Instruments 74ALVCH16244DGGR 16-Channel Buffer & Line Driver, 3-State, 1.65-3.6V, 48-Pin TSSOP [74ALVCH16244DGGR]; 662-6399
0₫
Mã kho: 6626399
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | ALVC |
| Logic Function | Buffer, Line Driver |
| Number of Channels per Chip | 16 |
| Input Type | Single Ended |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 48 |
| Maximum High Level Output Current | -24mA |
| Maximum Low Level Output Current | 24mA |
| Maximum Propagation Delay Time @ Maximum CL | 3.6 ns @ 2.7 V |
| Dimensions | 12.5 x 6.1 x 1.15mm |
| Height | 1.15mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Width | 6.1mm |
| Minimum Operating Supply Voltage | 1.65 V |
| Length | 12.5mm |
| Maximum Operating Temperature | +85 °C |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Temperature | -40 °C |
