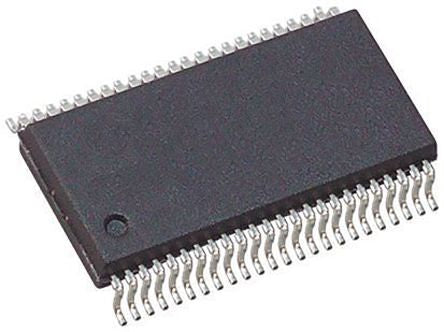

16-Bit Buffers/Driver 3-State SSOP48 [74ACT16541DL]; 145-5837
0₫
Mã kho: 1455837
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | AC |
| Logic Function | Buffer, Driver |
| Number of Channels per Chip | 16 |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Pin Count | 48 |
| Maximum High Level Output Current | -75mA |
| Maximum Low Level Output Current | 75mA |
| Maximum Propagation Delay Time @ Maximum CL | 9.2 ns @ 50 pF |
| Dimensions | 16 x 7.59 x 2.59mm |
| Height | 2.59mm |
| Propagation Delay Test Condition | 50pF |
| Length | 16mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 4.5 V |
| Width | 7.59mm |
| Minimum Operating Temperature | -40 °C |
