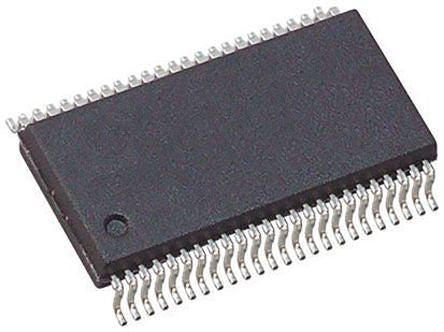

Texas Instruments 74AC16244DL 16-Channel Buffer & Line Driver, 3-State, 3 → 5.5 V, 48-Pin SSOP [74AC16244DL]; 662-9373
0₫
Mã kho: 6629373
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | AC |
| Logic Function | Buffer, Line Driver |
| Number of Channels per Chip | 16 |
| Input Type | Single Ended |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Pin Count | 48 |
| Maximum High Level Output Current | -24mA |
| Maximum Low Level Output Current | 24mA |
| Maximum Propagation Delay Time @ Maximum CL | 10.7 ns @ 3.3 V |
| Dimensions | 15.88 x 7.49 x 2.59mm |
| Height | 2.59mm |
| Maximum Operating Temperature | +85 °C |
| Length | 15.88mm |
| Width | 7.49mm |
| Minimum Operating Supply Voltage | 3 V |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Supply Voltage | 5.5 V |
| Minimum Operating Temperature | -40 °C |
