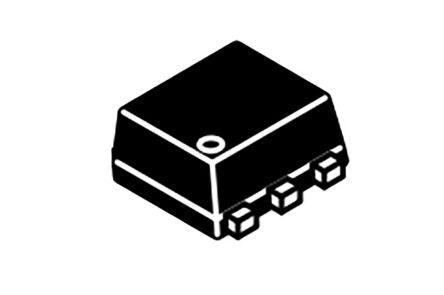

MC74VHC1G50P5T5G Buffer & Line Driver [MC74VHC1G50P5T5G]; 195-2645
0₫
Mã kho: 1952645
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | VHC |
| Logic Function | Buffer |
| Number of Channels per Chip | 1 |
| Input Type | CMOS |
| Mounting Type | Surface Mount |
| Package Type | SOT-953 |
| Pin Count | 5 |
| Maximum High Level Output Current | -8mA |
| Maximum Low Level Output Current | 8mA |
| Dimensions | 1.05 x 0.85 x 0.23mm |
| Height | 0.23mm |
| Length | 1.05mm |
| Maximum Operating Temperature | +125 °C |
| Width | 0.85mm |
| Minimum Operating Temperature | -55 °C |
| Automotive Standard | AEC-Q100 |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Supply Voltage | 5.5 V |
| Minimum Operating Supply Voltage | 2 V |
