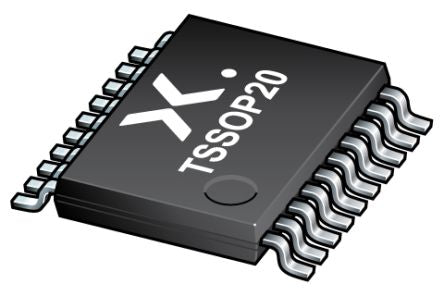

Nexperia 74HC541PW,118 Octal Buffer & Line Driver, 3-State, 20-Pin TSSOP [74HC541PW,118]; 170-4856
by Nexperia
0₫
Mã kho: 1704856
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | 74HC |
| Number of Channels per Chip | 8 |
| Input Type | CMOS |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 20 |
| Maximum High Level Output Current | -7.8mA |
| Maximum Low Level Output Current | 7.8mA |
| Maximum Propagation Delay Time @ Maximum CL | 175 ns @ 50 pF |
| Dimensions | 6.6 x 4.5 x 0.95mm |
| Height | 0.95mm |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 2 V |
| Width | 4.5mm |
| Maximum Operating Supply Voltage | 6 V |
| Length | 6.6mm |
