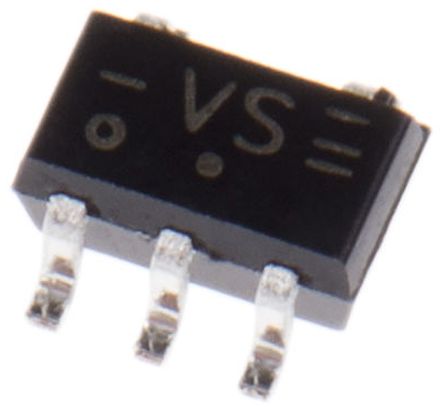

74HC1G126GW,125 Buffer & Line Driver [74HC1G126GW,125]; 146-0872
by Nexperia
0₫
Mã kho: 1460872
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | HC |
| Input Type | CMOS |
| Output Type | 3 State |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 5 |
| Maximum High Level Output Current | -7.8mA |
| Maximum Low Level Output Current | 7.8mA |
| Maximum Propagation Delay Time @ Maximum CL | 150 ns @ 50 pF |
| Dimensions | 2.25 x 1.35 x 1mm |
| Height | 1mm |
| Maximum Operating Supply Voltage | 6 V |
| Length | 2.25mm |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 2 V |
| Width | 1.35mm |
