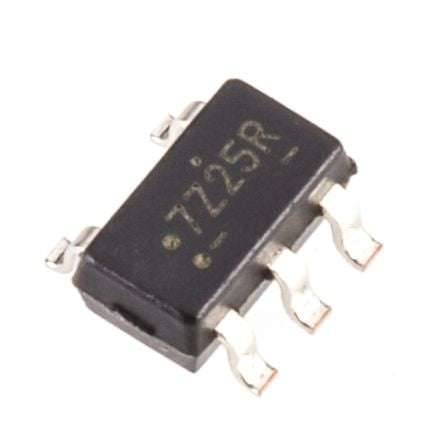

ON Semiconductor NC7SZ125M5X Buffer & Line Driver, 3-State, 5-Pin SOT-23 [NC7SZ125M5X]; 169-8535
0₫
Mã kho: 1698535
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | TinyLogic UHS |
| Logic Function | Buffer, Line Driver |
| Number of Channels per Chip | 1 |
| Input Type | Single Ended |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Pin Count | 5 |
| Maximum High Level Output Current | -32mA |
| Maximum Low Level Output Current | 32mA |
| Maximum Propagation Delay Time @ Maximum CL | 5.7 ns @ 3.3 V |
| Dimensions | 3 x 1.7 x 1.3mm |
| Height | 1.3mm |
| Minimum Operating Temperature | -40 °C |
| Width | 1.7mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Length | 3mm |
| Maximum Operating Temperature | +85 °C |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Supply Voltage | 1.65 V |
