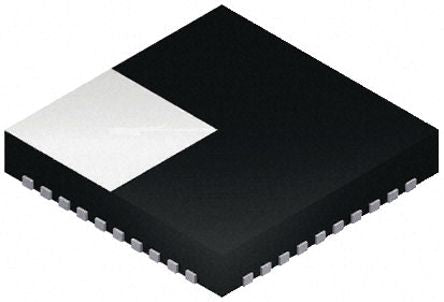

Texas Instruments, TPS65251RHAT Step-Down Switching Regulator Triple 3A, Maximum of 3.3 V 40-Pin, VQFN [TPS65251RHAT]; 812-3823
0₫
Mã kho: 8123823
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Output Current | 3A |
Maximum Output Voltage | 3.3 V |
Regulator Function | Step Down |
Minimum Input Voltage | 4.5 V |
Maximum Input Voltage | 18 V |
Output Type | Fixed |
Mounting Type | Surface Mount |
Number of Outputs | 3 |
Pin Count | 40 |
Package Type | VQFN |
Switching Regulator | Yes |
Line Regulation | 0.5 %/V |
Load Regulation | 0.5 %/A |
Dimensions | 6.15 x 6.15 x 0.95mm |
Width | 6.15mm |
Height | 0.95mm |
Length | 6.15mm |
Maximum Operating Temperature | +125 °C |
Maximum Switching Frequency | 2.2 MHz |
Minimum Operating Temperature | -40 °C |
