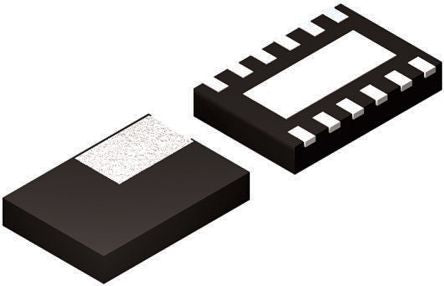

Texas Instruments, TPS62742DSST DC-DC Converter 400mA Adjustable 12-Pin, WSON [TPS62742DSST]; 162-9898
0₫
Mã kho: 1629898
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 400mA |
| Maximum Output Voltage | 3.3 V |
| Regulator Function | Step Down |
| Minimum Output Voltage | 1.8 V |
| Minimum Input Voltage | 2.2 V |
| Maximum Input Voltage | 5.5 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 12 |
| Package Type | WSON |
| Switching Regulator | Yes |
| Line Regulation | 0 %/V |
| Load Regulation | 0.001 %/mA |
| Minimum Operating Temperature | -40 °C |
| Width | 2.1mm |
| Length | 3.1mm |
| Dimensions | 3.1 x 2.1 x 0.75mm |
| Height | 0.75mm |
| Maximum Operating Temperature | +85 °C |
| Maximum Switching Frequency | 2 MHz |
| Efficiency | 0.9 |
