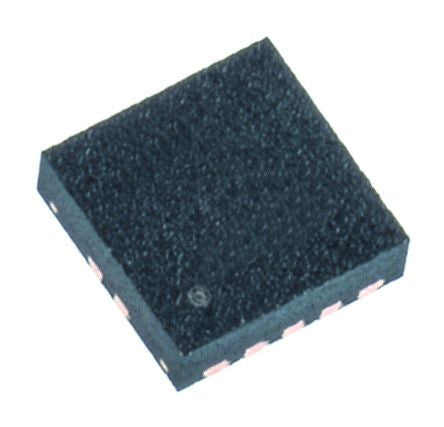

Texas Instruments, TPS62420DRCT Step-Down Switching Regulator Dual 1A Adjustable, 0.6 → 6 V 10-Pin, SON [TPS62420DRCT]; 661-7055
0₫
Mã kho: 6617055
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 1A |
| Maximum Output Voltage | 6 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 0.6 V |
| Minimum Input Voltage | 2.5 V |
| Maximum Input Voltage | 6 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Pin Count | 10 |
| Package Type | SON |
| Switching Regulator | Yes |
| Load Regulation | 0.5 %/A |
| Width | 3mm |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 3 x 3 x 0.9mm |
| Maximum Switching Frequency | 2250 kHz |
| Length | 3mm |
| Maximum Operating Temperature | +85 °C |
| Efficiency | 0.95 |
| Height | 0.9mm |
