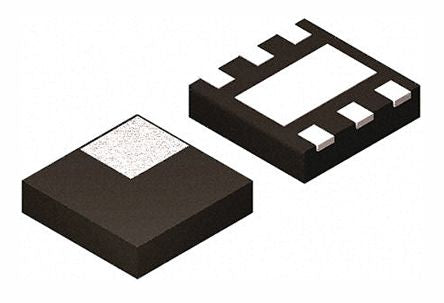

Texas Instruments, TPS62240DRVT Step-Down Switching Regulator 300mA Adjustable, 0.6 → 6 V 6-Pin, SON [TPS62240DRVT]; 661-7001
0₫
Mã kho: 6617001
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 300mA |
| Maximum Output Voltage | 6 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 0.6 V |
| Minimum Input Voltage | 2 V |
| Maximum Input Voltage | 6 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 6 |
| Package Type | SON |
| Switching Regulator | Yes |
| Load Regulation | -0.5 %/A |
| Height | 0.75mm |
| Length | 2mm |
| Dimensions | 2 x 2 x 0.75mm |
| Maximum Operating Temperature | +85 °C |
| Width | 2mm |
| Maximum Switching Frequency | 2250 kHz |
| Minimum Operating Temperature | -40 °C |
