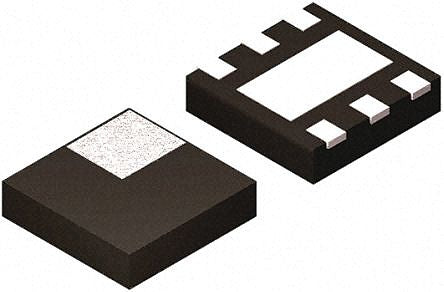

Step-Down Switching Regulator [TPS62232DRYT]; 145-5844
0₫
Mã kho: 1455844
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 500mA |
| Maximum Output Voltage | 1.2 V |
| Regulator Function | Step Down |
| Minimum Input Voltage | 2.05 V |
| Maximum Input Voltage | 6 V |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 6 |
| Package Type | SON |
| Switching Regulator | Yes |
| Line Regulation | 0 %/V |
| Load Regulation | 0.001 %/mA |
| Efficiency | 0.94 |
| Height | 0.55mm |
| Maximum Switching Frequency | 3 MHz |
| Length | 1.5mm |
| Dimensions | 1.5 x 1.05 x 0.55mm |
| Maximum Operating Temperature | +85 °C |
| Width | 1.05mm |
| Minimum Operating Temperature | -40 °C |
