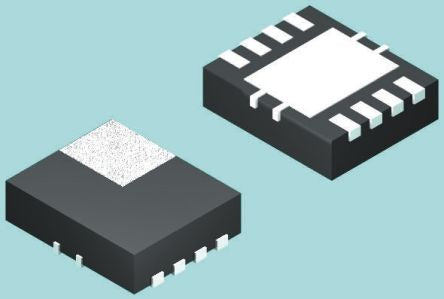

Texas Instruments, TPS62163DSGT Step-Down Switching Regulator 1A 8-Pin, WSON [TPS62163DSGT]; 121-9750
0₫
Mã kho: 1219750
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 1A |
| Maximum Output Voltage | 5 V |
| Regulator Function | Buck |
| Minimum Input Voltage | 3 V |
| Maximum Input Voltage | 17 V |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 8 |
| Package Type | WSON |
| Line Regulation | 0.02 %/V |
| Load Regulation | 0.05 %/A |
| Maximum Switching Frequency | 2.25 MHz |
| Length | 2.1mm |
| Dimensions | 2.1 x 2.1 x 0.75mm |
| Minimum Operating Temperature | -40 °C |
| Width | 2.1mm |
| Maximum Operating Temperature | +85 °C |
| Height | 0.75mm |
