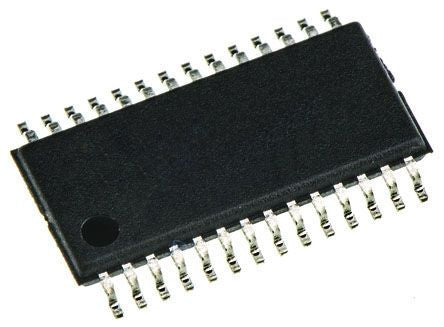

Texas Instruments, TPS54615PWP Step-Down Switching Regulator 6A, 2.5 V 28-Pin, HTSSOP [TPS54615PWP]; 661-8540
0₫
Mã kho: 6618540
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 6A |
| Regulator Function | Buck Controller |
| Minimum Input Voltage | 3 V |
| Maximum Input Voltage | 6 V |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 28 |
| Package Type | HTSSOP |
| Switching Regulator | Yes |
| Line Regulation | 0.088 %/V |
| Load Regulation | 0.092 %/A |
| Length | 9.7mm |
| Height | 1.15mm |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 9.7 x 4.4 x 1.15mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Switching Frequency | 762 kHz |
| Width | 4.4mm |
