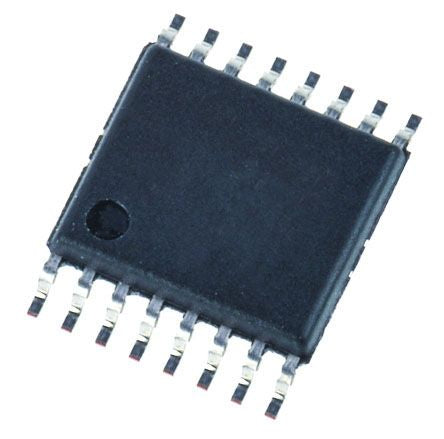

Texas Instruments, TPS54350PWP Step-Down Switching Regulator 3A Adjustable, Minimum of 0.891 V 16-Pin, HTSSOP [TPS54350PWP]; 422-992
0₫
Mã kho: 422992
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 3A |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 0.891 V |
| Minimum Input Voltage | 4.5 V |
| Maximum Input Voltage | 20 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 16 |
| Package Type | HTSSOP |
| Switching Regulator | Yes |
| Minimum Operating Temperature | -40 °C |
| Maximum Switching Frequency | 700 kHz |
| Width | 4.4mm |
| Dimensions | 5 x 4.4 x 1.15mm |
| Length | 5mm |
| Maximum Operating Temperature | +85 °C |
| Height | 1.15mm |
