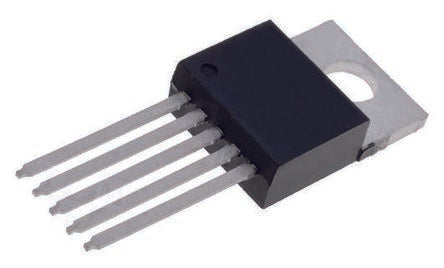

Texas Instruments, TL2575-05IKV Switching Regulator 1A Adjustable 5-Pin, TO-220 [TL2575-05IKV]; 162-6744
0₫
Mã kho: 1626744
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 1A |
| Maximum Output Voltage | 5.25 V |
| Regulator Function | Step Down |
| Minimum Output Voltage | 4.75 V |
| Minimum Input Voltage | 4.75 V |
| Maximum Input Voltage | 40 V |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Pin Count | 5 |
| Package Type | TO-220 |
| Switching Regulator | Yes |
| Line Regulation | ±4 %, ±5 % |
| Load Regulation | ±4 %, ±5 % |
| Height | 4.7mm |
| Width | 9.25mm |
| Efficiency | 0.88 |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 10.67 x 9.25 x 4.7mm |
| Maximum Switching Frequency | 52 kHz |
| Maximum Operating Temperature | +125 °C |
| Length | 10.67mm |
