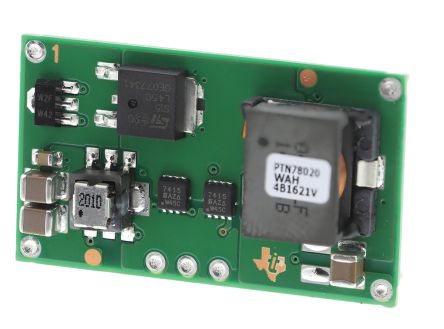

Texas Instruments, PTN78020WAH Step-Down Switching Regulator 6A 7-Pin, DIP Module [PTN78020WAH]; 545-7849
0₫
Mã kho: 5457849
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 6A |
| Regulator Function | Buck Controller |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Pin Count | 7 |
| Package Type | DIP Module |
| Switching Regulator | Yes |
| Line Regulation | ±10 |
| Load Regulation | ±10 |
| Width | 22.1mm |
| Minimum Operating Temperature | -40 °C |
| Height | 8.75mm |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 37.97 x 22.1 x 8.75mm |
| Length | 37.97mm |
