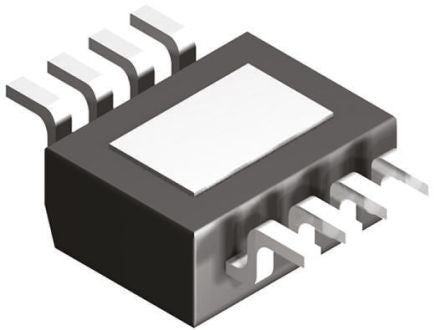

Texas Instruments, LM5017MR/NOPB Step-Down Switching Regulator 650mA Adjustable, 1.25 to 90 V 8-Pin, SOIC [LM5017MR/NOPB]; 121-9339
0₫
Mã kho: 1219339
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 650mA |
| Maximum Output Voltage | 90 V |
| Regulator Function | Synchronous Buck Controller |
| Minimum Output Voltage | 1.25 V |
| Minimum Input Voltage | 7.5 V |
| Maximum Input Voltage | 100 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 8 |
| Package Type | SOIC |
| Switching Regulator | Yes |
| Dimensions | 4.9 x 2.41 x 1.47mm |
| Width | 2.41mm |
| Minimum Operating Temperature | -40 °C |
| Height | 1.47mm |
| Maximum Operating Temperature | +125 °C |
| Length | 4.9mm |
| Maximum Switching Frequency | 1 MHz |
