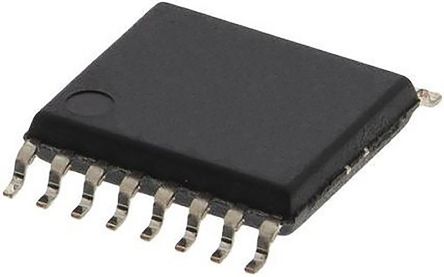

Texas Instruments, LM46001QPWPTQ1 Step-Down Switching Regulator 1A Adjustable, 1 → 28 V 16-Pin, HTSSOP [LM46001QPWPTQ1]; 133-0665
0₫
Mã kho: 1330665
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 1A |
| Maximum Output Voltage | 28 V |
| Regulator Function | Step Down |
| Minimum Output Voltage | 1 V |
| Minimum Input Voltage | 3.5 V |
| Maximum Input Voltage | 60 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 16 |
| Package Type | HTSSOP |
| Switching Regulator | Yes |
| Dimensions | 4.9 x 4.5 x 1.05mm |
| Length | 4.9mm |
| Maximum Switching Frequency | 2200 kHz |
| Maximum Operating Temperature | +125 °C |
| Height | 1.05mm |
| Width | 4.5mm |
| Minimum Operating Temperature | -40 °C |
