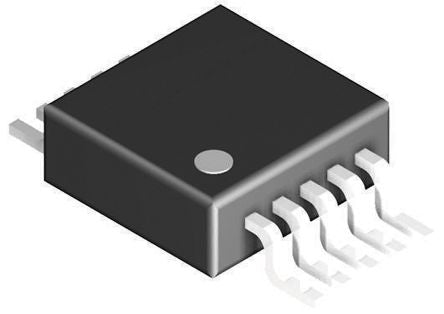

Texas Instruments, LM3409MY/NOPB Step-Down Switching Regulator 5A 10-Pin, VSSOP [LM3409MY/NOPB]; 761-5678
0₫
Mã kho: 7615678
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 5A |
| Maximum Output Voltage | 42 V |
| Regulator Function | Buck Controller |
| Minimum Input Voltage | 6 V |
| Maximum Input Voltage | 42 V |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 10 |
| Package Type | VSSOP |
| Length | 3mm |
| Maximum Switching Frequency | 5000 kHz |
| Height | 0.86mm |
| Maximum Operating Temperature | +125 °C |
| Efficiency | 0.97 |
| Dimensions | 3 x 3 x 0.86mm |
| Minimum Operating Temperature | -40 °C |
| Width | 3mm |
