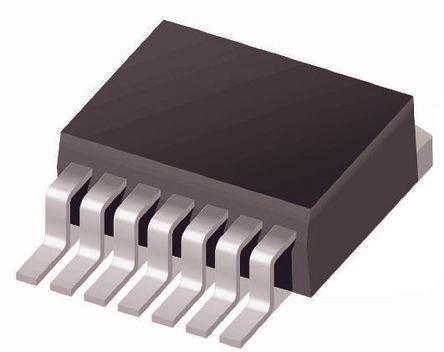

Stepdown switching regulator,LM2677S-ADJ [LM2677S-ADJ/NOPB]; 145-6528
0₫
Mã kho: 1456528
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 5A |
| Maximum Output Voltage | 37 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 1.2 V |
| Minimum Input Voltage | 8 V |
| Maximum Input Voltage | 40 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 7 |
| Package Type | D2PAK (TO-263) |
| Switching Regulator | Yes |
| Width | 8.64mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Maximum Switching Frequency | 260 kHz |
| Length | 10.16mm |
| Dimensions | 10.16 x 8.64 x 4.57mm |
| Efficiency | 0.84 |
| Height | 4.57mm |
