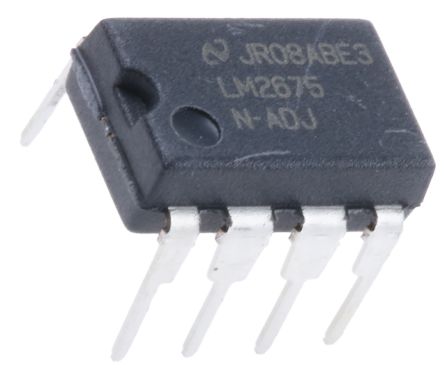

Texas Instruments, LM2675N-ADJ/NOPB Step-Down Switching Regulator 1A Adjustable, 1.21 → 37 V 8-Pin, MDIP [LM2675N-ADJ/NOPB]; 100-5902
0₫
Mã kho: 1005902
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 1A |
| Maximum Output Voltage | 37 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 1.21 V |
| Minimum Input Voltage | 8 V |
| Maximum Input Voltage | 40 V |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Pin Count | 8 |
| Package Type | MDIP |
| Switching Regulator | Yes |
| Width | 6.35mm |
| Dimensions | 9.27 x 6.35 x 3.3mm |
| Length | 9.27mm |
| Maximum Switching Frequency | 260 kHz |
| Maximum Operating Temperature | +125 °C |
| Height | 3.3mm |
| Minimum Operating Temperature | -40 °C |
