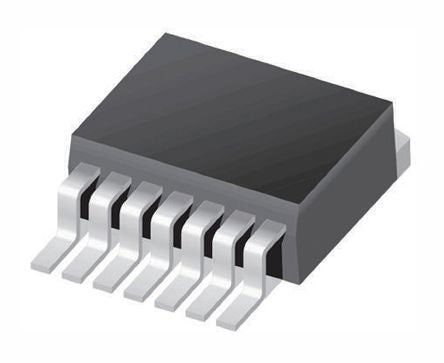

Texas Instruments LM2599S-12/NOPB, Step Down DC-DC Converter 7-Pin, TO-263 [LM2599S-12/NOPB]; 761-4984
0₫
Mã kho: 7614984
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Voltage | 12 V |
| Minimum Input Voltage | 4.5 V |
| Maximum Input Voltage | 40 V |
| Maximum Output Current | 3A |
| Converter Type | Step Down |
| Number of Outputs | 1 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Package Type | TO-263 |
| Pin Count | 7 |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Length | 10.16mm |
| Switching Regulator | Yes |
| Dimensions | 10.16 x 9.91 x 4.57mm |
| Width | 9.91mm |
| Maximum Switching Frequency | 0.15 MHz |
| Efficiency | 0.9 |
| Height | 4.57mm |
