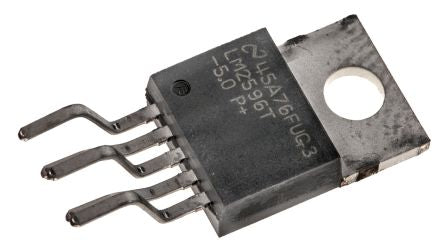

Texas Instruments, LM2596T-5.0/NOPB Step-Down Switching Regulator 3A, 5 V 5-Pin, TO-220, Buck Controller [LM2596T-5.0/NOPB]; 920-3602
0₫
Mã kho: 9203602
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 3A |
| Regulator Function | Buck Controller, Inverting |
| Minimum Input Voltage | 4.5 V |
| Maximum Input Voltage | 40 V |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Pin Count | 5 |
| Package Type | TO-220 |
| Switching Regulator | Yes |
| Minimum Operating Temperature | -40 °C |
| Width | 4.57mm |
| Height | 8.64mm |
| Maximum Operating Temperature | +125 °C |
| Length | 10.16mm |
| Dimensions | 10.16 x 4.57 x 8.64mm |
| Maximum Switching Frequency | 173 kHz |
