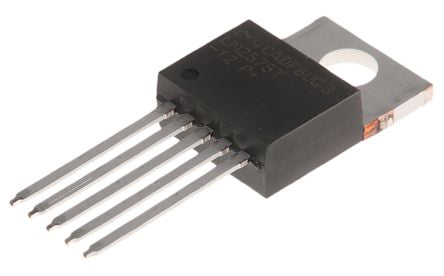

Texas Instruments, LM2575T-12/NOPB Step-Down Switching Regulator 1A, 12 V 5-Pin, TO-220, Buck Controller [LM2575T-12/NOPB]; 121-8702
0₫
Mã kho: 1218702
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Output Current | 1A |
Regulator Function | Buck Controller, Inverting |
Minimum Input Voltage | 4 V |
Maximum Input Voltage | 40 V |
Output Type | Fixed |
Mounting Type | Through Hole |
Number of Outputs | 1 |
Pin Count | 5 |
Package Type | TO-220 |
Switching Regulator | Yes |
Width | 4.7mm |
Height | 8.89mm |
Maximum Operating Temperature | +125 °C |
Minimum Operating Temperature | -40 °C |
Dimensions | 10.16 x 4.7 x 8.89mm |
Maximum Switching Frequency | 58 kHz |
Length | 10.16mm |
