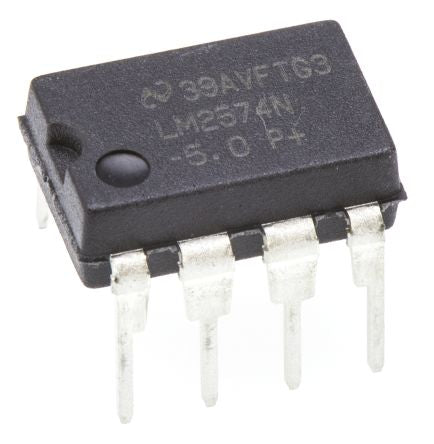

Texas Instruments, LM2574N-5.0/NOPB Step-Down Switching Regulator 500mA, 5 V 8-Pin, MDIP, Buck Controller [LM2574N-5.0/NOPB]; 533-8013
0₫
Mã kho: 5338013
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 500mA |
| Regulator Function | Buck Controller, Inverting |
| Minimum Input Voltage | 4 V |
| Maximum Input Voltage | 40 V |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Pin Count | 8 |
| Package Type | MDIP |
| Switching Regulator | Yes |
| Dimensions | 9.27 x 6.35 x 3.3mm |
| Efficiency | 0.77 |
| Height | 3.3mm |
| Maximum Switching Frequency | 58 kHz |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Width | 6.35mm |
| Length | 9.27mm |
