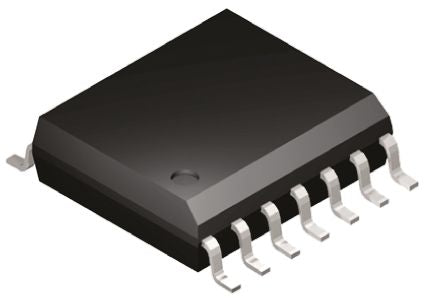

Texas Instruments, LM2574M-ADJ/NOPB Step-Down Switching Regulator 500mA Adjustable, 1.23 → 37 V 14-Pin, SOIC W [LM2574M-ADJ/NOPB]; 460-910
0₫
Mã kho: 460910
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 500mA |
| Maximum Output Voltage | 37 V |
| Regulator Function | Buck Controller, Inverting |
| Minimum Output Voltage | 1.23 V |
| Minimum Input Voltage | 4 V |
| Maximum Input Voltage | 40 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 14 |
| Package Type | SOIC W |
| Switching Regulator | Yes |
| Efficiency | 0.77 |
| Dimensions | 9.2 x 7.5 x 2.35mm |
| Height | 2.35mm |
| Length | 9.2mm |
| Maximum Operating Temperature | +125 °C |
| Maximum Switching Frequency | 58 kHz |
| Width | 7.5mm |
| Minimum Operating Temperature | -40 °C |
