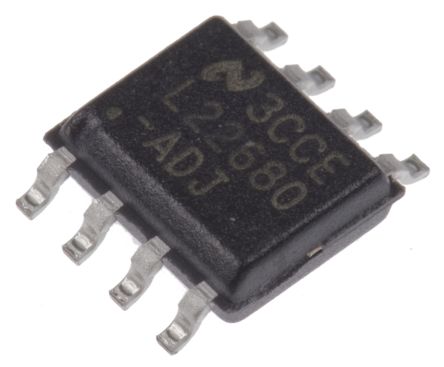

Texas Instruments, LM22680MR-ADJ/NOPB Step-Down Switching Regulator 2A Adjustable, 1.25 → 37 V 8-Pin, HSOP [LM22680MR-ADJ/NOPB]; 796-8001
0₫
Mã kho: 7968001
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 2A |
| Maximum Output Voltage | 37 V |
| Regulator Function | Step Down |
| Minimum Output Voltage | 1.25 V |
| Minimum Input Voltage | 4.5 V |
| Maximum Input Voltage | 42 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 8 |
| Package Type | HSOP |
| Switching Regulator | Yes |
| Minimum Operating Temperature | -40 °C |
| Width | 3.9mm |
| Height | 1.47mm |
| Maximum Operating Temperature | +125 °C |
| Maximum Switching Frequency | 500 kHz |
| Dimensions | 4.9 x 3.9 x 1.47mm |
| Length | 4.9mm |
