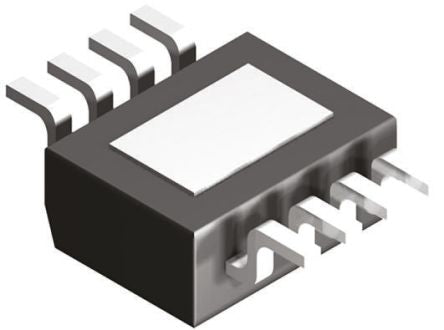

STMicroelectronics, L5973D013TR Step-Down Switching Regulator 3.5A Adjustable 8-Pin, HSOP [L5973D013TR]; 165-6598
0₫
Mã kho: 1656598
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 3.5A |
| Maximum Output Voltage | 35 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 1.235 V |
| Minimum Input Voltage | 4 V |
| Maximum Input Voltage | 36 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 8 |
| Package Type | HSOP |
| Switching Regulator | Yes |
| Line Regulation | 10 mV |
| Load Regulation | 15 mV |
| Minimum Operating Temperature | -40 °C |
| Efficiency | 0.9 |
| Width | 4mm |
| Maximum Operating Temperature | +150 °C |
| Height | 1.25mm |
| Dimensions | 5 x 4 x 1.25mm |
| Length | 5mm |
| Maximum Switching Frequency | 280 kHz |
