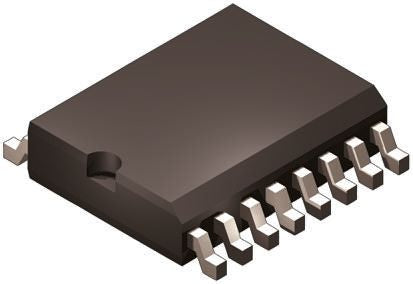

STMicroelectronics, L4971D Step-Down Switching Regulator 1.5A Adjustable 16-Pin, SOIC W [L4971D]; 168-6458
0₫
Mã kho: 1686458
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 1.5A |
| Maximum Output Voltage | 50 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 3.3 V |
| Minimum Input Voltage | 8 V |
| Maximum Input Voltage | 55 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 16 |
| Package Type | SOIC W |
| Switching Regulator | Yes |
| Line Regulation | 10 mV |
| Length | 10.5mm |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 10.5 x 7.6 x 2.35mm |
| Maximum Switching Frequency | 300 kHz |
| Minimum Operating Temperature | -40 °C |
| Efficiency | 0.85 |
| Width | 7.6mm |
| Height | 2.35mm |
