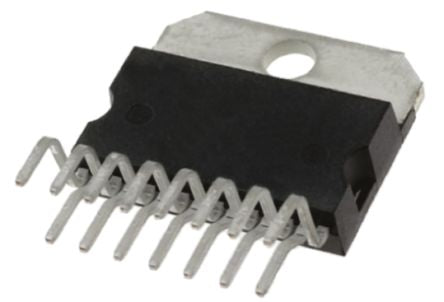

STMicroelectronics, L296P Step-Down Switching Regulator 4A Adjustable 15-Pin, MULTIWATT V [L296P]; 178-1391
0₫
Mã kho: 1781391
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 4A |
| Maximum Output Voltage | 40 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 5.1 V |
| Minimum Input Voltage | 9 V |
| Maximum Input Voltage | 46 V |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Pin Count | 15 |
| Package Type | MULTIWATT V |
| Switching Regulator | Yes |
| Line Regulation | 50 mV |
| Load Regulation | 45 mV |
| Dimensions | 19.6 x 5 x 10.7mm |
| Height | 10.7mm |
| Minimum Operating Temperature | -40 °C |
| Width | 5mm |
| Length | 19.6mm |
| Maximum Switching Frequency | 200 kHz |
| Maximum Operating Temperature | +150 °C |
