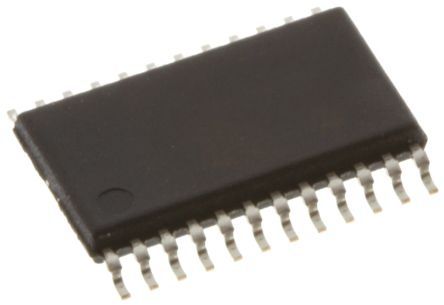

ROHM, BD99011EFV-ME2 Step-Down Switching Regulator 2A 24-Pin, HTSSOP [BD99011EFV-ME2]; 184-5306
by ROHM
0₫
Mã kho: 1845306
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 2A |
| Maximum Output Voltage | 5 V |
| Minimum Input Voltage | 3.6 V |
| Maximum Input Voltage | 35 V |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 24 |
| Package Type | HTSSOP |
| Switching Regulator | Yes |
| Height | 0.85mm |
| Length | 7.8mm |
| Automotive Standard | AEC-Q100 |
| Minimum Operating Temperature | -40 °C |
| Width | 5.6mm |
| Maximum Operating Temperature | +105 °C |
| Maximum Switching Frequency | 500 kHz |
| Dimensions | 7.8 x 5.6 x 0.85mm |
