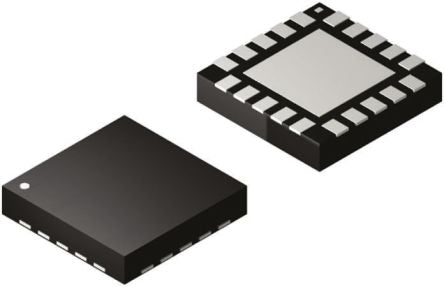

ROHM, BD9153MUV-E2 Step-Down Switching Regulator Triple 1.5A Adjustable, 0.8 → 2.5 V, 1.8 → 3.3 V 24-Pin [BD9153MUV-E2]; 752-7221
by ROHM
0₫
Mã kho: 7527221
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 1.5A |
| Maximum Output Voltage | 3.3 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 0.8 V |
| Minimum Input Voltage | 4.5 V |
| Maximum Input Voltage | 5.5 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 3 |
| Pin Count | 24 |
| Package Type | VQFN |
| Switching Regulator | Yes |
| Width | 4mm |
| Minimum Operating Temperature | -40 °C |
| Height | 1mm |
| Maximum Operating Temperature | +85 °C |
| Maximum Switching Frequency | 1.2 MHz |
| Length | 4mm |
| Dimensions | 4 x 4 x 1mm |
