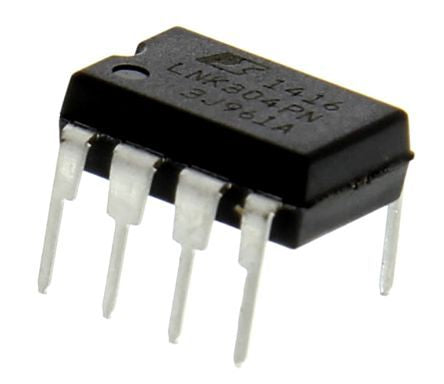

Power Integrations, LNK304PN Step-Down Switching Regulator 170mA 7-Pin, DIPB [LNK304PN]; 146-5626
0₫
Mã kho: 1465626
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 170mA |
| Maximum Output Voltage | 700 V |
| Regulator Function | Boost, Buck, Flyback |
| Minimum Output Voltage | -0.3 V |
| Minimum Input Voltage | 85 V ac |
| Maximum Input Voltage | 265 V ac |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Pin Count | 7 |
| Package Type | DIPB |
| Dimensions | 9.83 x 6.6 x 3.68mm |
| Length | 9.83mm |
| Maximum Operating Temperature | +150 °C |
| Maximum Switching Frequency | 70 kHz |
| Height | 3.68mm |
| Minimum Operating Temperature | -40 °C |
| Width | 3.68mm |
