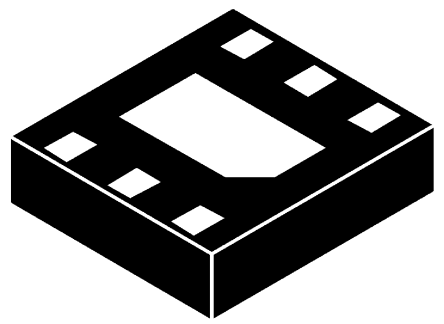

ON Semiconductor, NCP1599MNTWG Step-Down Switching Regulator 3A Adjustable, 0.8 to 3.3 V 6-Pin, DFN [NCP1599MNTWG]; 121-9882
0₫
Mã kho: 1219882
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 3A |
| Maximum Output Voltage | 3.3 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 0.8 V |
| Minimum Input Voltage | 3 V |
| Maximum Input Voltage | 5.5 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 6 |
| Package Type | DFN |
| Switching Regulator | Yes |
| Line Regulation | 0.03 %/V |
| Length | 3mm |
| Minimum Operating Temperature | -40 °C |
| Width | 3mm |
| Dimensions | 3 x 3 x 0.95mm |
| Maximum Switching Frequency | 1 MHz |
| Maximum Operating Temperature | +85 °C |
| Height | 0.95mm |
