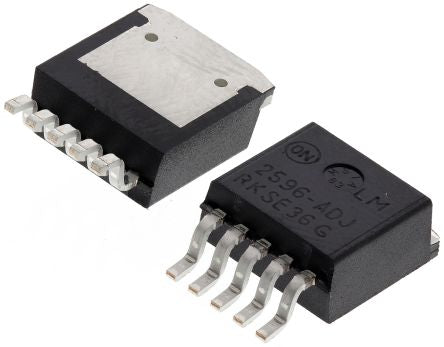

ON Semiconductor, LM2596DSADJR4G Switching Regulator 3A Adjustable, 1.23 → 37 V 5-Pin, D2PAK [LM2596DSADJR4G]; 121-6369
0₫
Mã kho: 1216369
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 3A |
| Maximum Output Voltage | 37 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 1.23 V |
| Minimum Input Voltage | 4.5 V |
| Maximum Input Voltage | 40 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 5 |
| Package Type | D2PAK |
| Switching Regulator | Yes |
| Length | 10.24mm |
| Dimensions | 10.236 x 4.572 x 9.347mm |
| Minimum Operating Temperature | -40 °C |
| Width | 4.572mm |
| Maximum Switching Frequency | 150 kHz |
| Height | 9.347mm |
| Maximum Operating Temperature | +125 °C |
